Flail mowers
Rear-front flail mowers

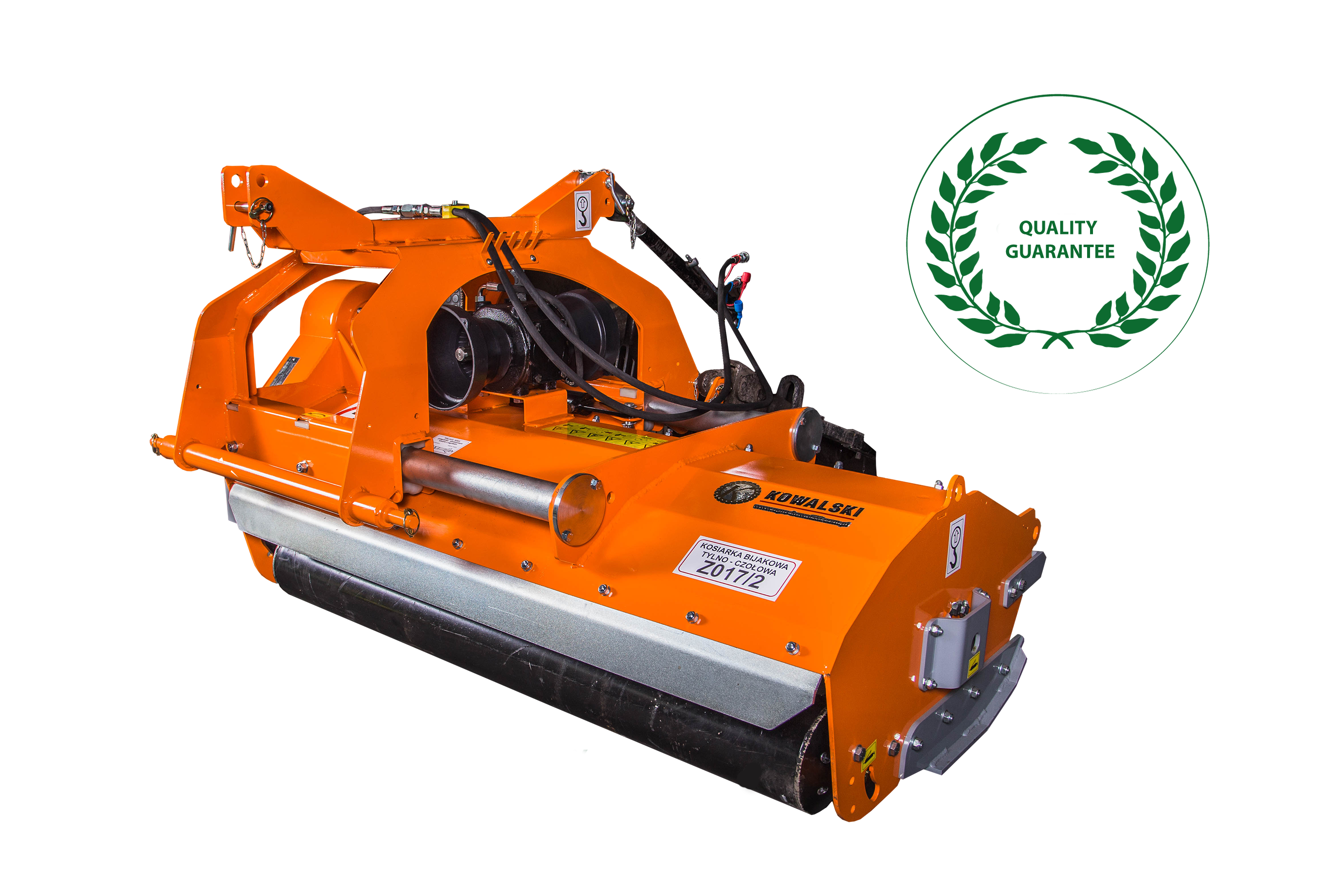

KBT18 (1,85 m) Z017/3
A flail mower is a machine mounted on the rear side of the tractor that enables the mowing work behind the tractor/ at the side of the tractor with the possibility of avoiding obstacles, in ditches as well as on embankments. The mower is also capable of cutting bushes.
The product meets the essential requirements of the EU directives
The equipment:
• hammers,
• supporting slides
• horizontal roller to adjust the cutting height,
• opposite blades,
• protections compliant with CE,
• adjustable tensioner,
• hydraulic lateral and angular movement,
• gearing with a clutch.
Machine description:
- It is a mid-range machine for use in average conditions for both agricultural and municipal companies.
The following design features attest to its high execution quality, durability and usability: - replaceable slides made of RAEX 400 wear-resistant steel,
- solid body made of wear-resistant steel,
- solid thick-walled working shaft with a diameter of 170 mm, to which 20 flail blades are attached,
- a 190 mm diameter following roller with variable position (cutting height adjustment),
- it is mounted as a standard on the tractor's three-point suspension system, both rear and front,
- a robust bevel gearbox transmitting drive to the working shaft, equipped with a one-way clutch as a standard,
- by moving the gearing to the outside of the mower, it is possible to use the entire width of the mower when mowing ditches,
- hydraulic safety protection to protect the machine from damage when hitting an obstacle,
- possibility to mow surfaces with an inclination of -65° to 90°,
- mowing of weeds, grasses and bushes of up to 50 mm in diameter on undeveloped areas, in average working conditions,
- additional two counter-knives inside the body to help shred the mowed material,
- use of a robust bearing system of the flail shaft manufactured by SKF,
- electronic balancing of the working shaft,
- control using a hydraulic system based on a double-acting cylinder, which enables lateral displacement in the range of 0-40 cm.
- thanks to the use of two (long wide-angled) PTO shafts, it is possible to work in any position without damaging the PTO shaft,
- the suspension of the machine on pantographs enables numerous working positions.
Technical data:
